Applications:
* Grooving/Turning/Boring Aluminum and Cast Iron pistons
Advantages:
* Enables high speed machining while maintaining longer tool life.
* Provides consistent products, simplified quality control, and lower cost.
* Maximum stability.
* Maximum economy.
* Maximum feed/speed.
* Suitable for general and optimized final machining
Order Specification

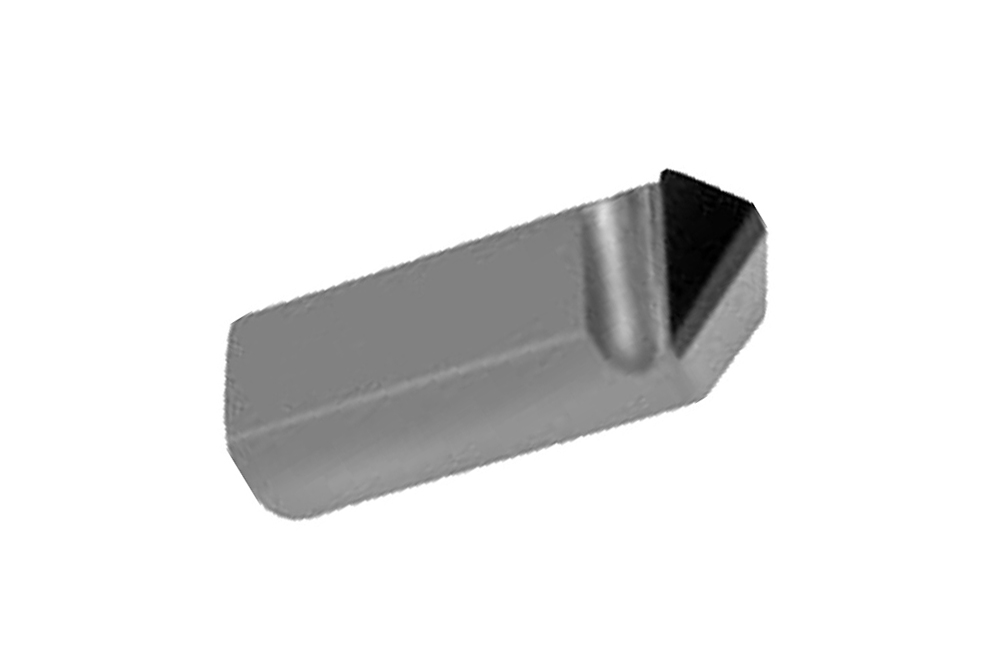

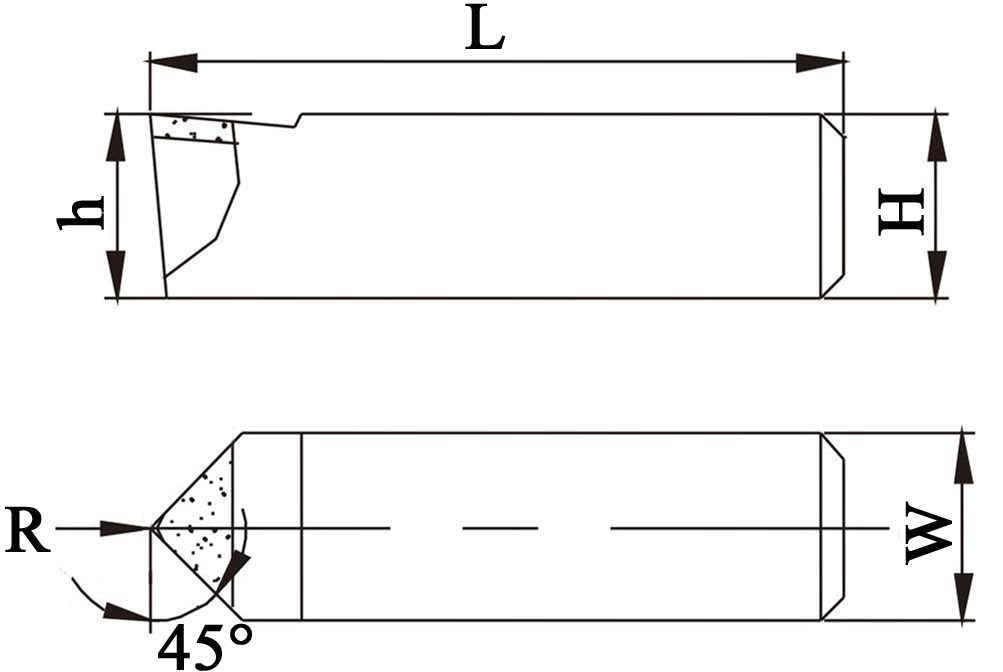

1. PCD External Turning/Boring Tool
| PCD External Turning/Boring Tool for Pistons | |||||
|
|
|||||
|
Model |
Length |
Width |
Height |
height |
Radius |
|
HLT45-4 |
10 |
4 |
3.5 |
2.2 |
0.2,0.3,0.4,0.8,1.0 |
|
HLT45-8 |
30 |
8 |
7 |
4.5 |
0.2,0.3,0.4,0.8,1.0 |
|
HLT45-10 |
35 |
10 |
9 |
4.8 |
0.2,0.3,0.4,0.8,1.0 |
|
HLT45-12 |
40 |
12 |
11 |
5.2 |
0.2,0.3,0.4,0.8,1.0 |

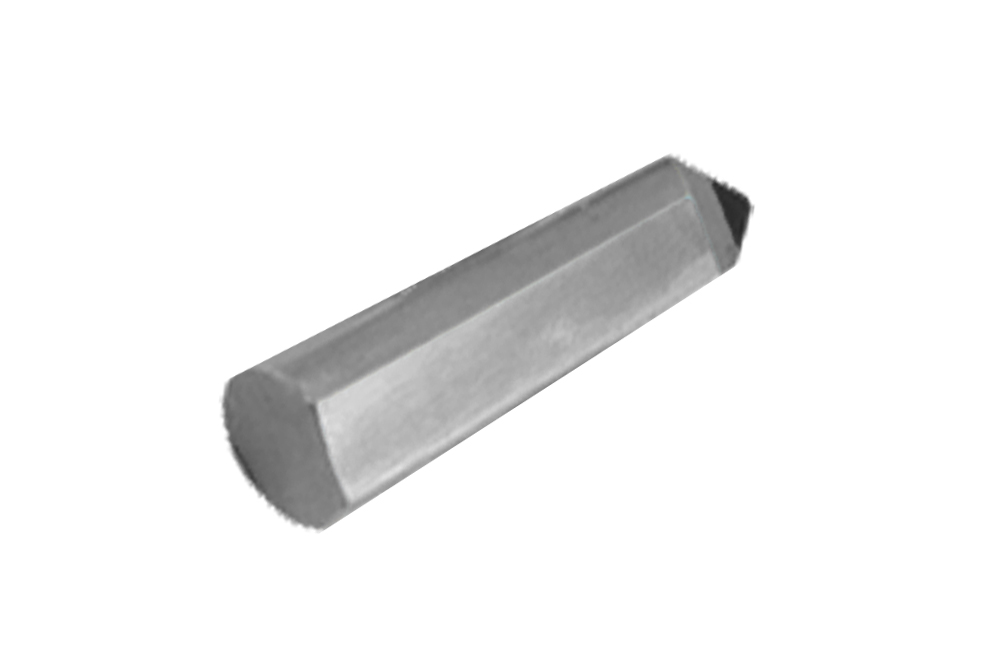

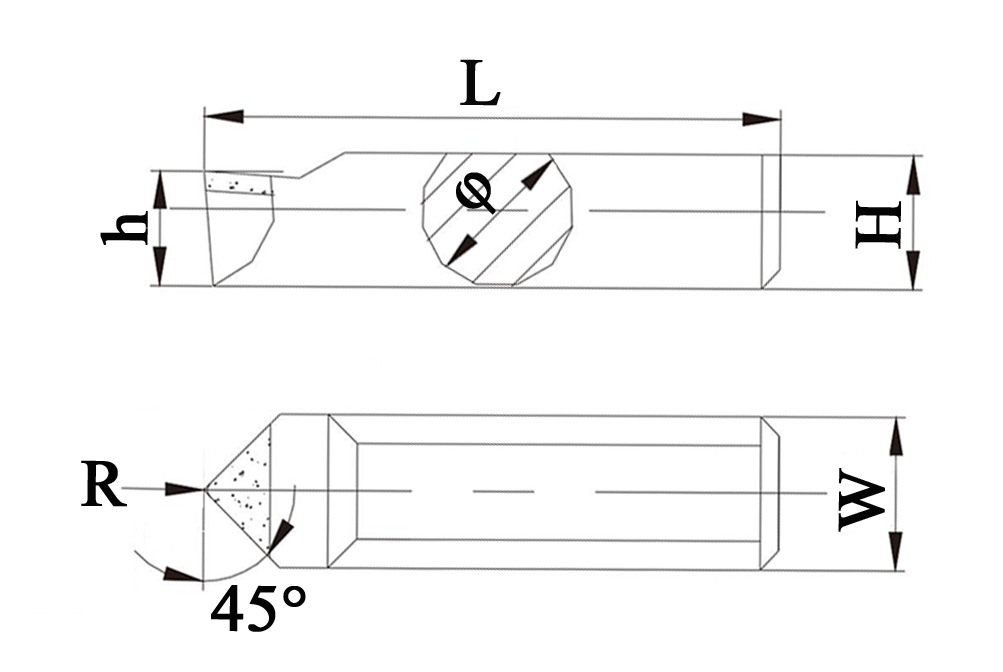

| PCD Boring Tool for Pistons | |||||
|
|
|||||
|
Model |
Length |
Width |
Height |
height |
Radius |
|
HLB45-8 |
30 |
8 |
8 |
8 |
0.5,0.8,1.0 |
|
HLB45-10 |
60 |
10 |
10 |
10 |
0.5,0.8,1.0 |
|
HLB45-12 |
100 |
12 |
12 |
12 |
0.5,0.8,1.0 |
|
HLB45-20 |
120 |
20 |
20 |
20 |
0.5,0.8,1.0 |

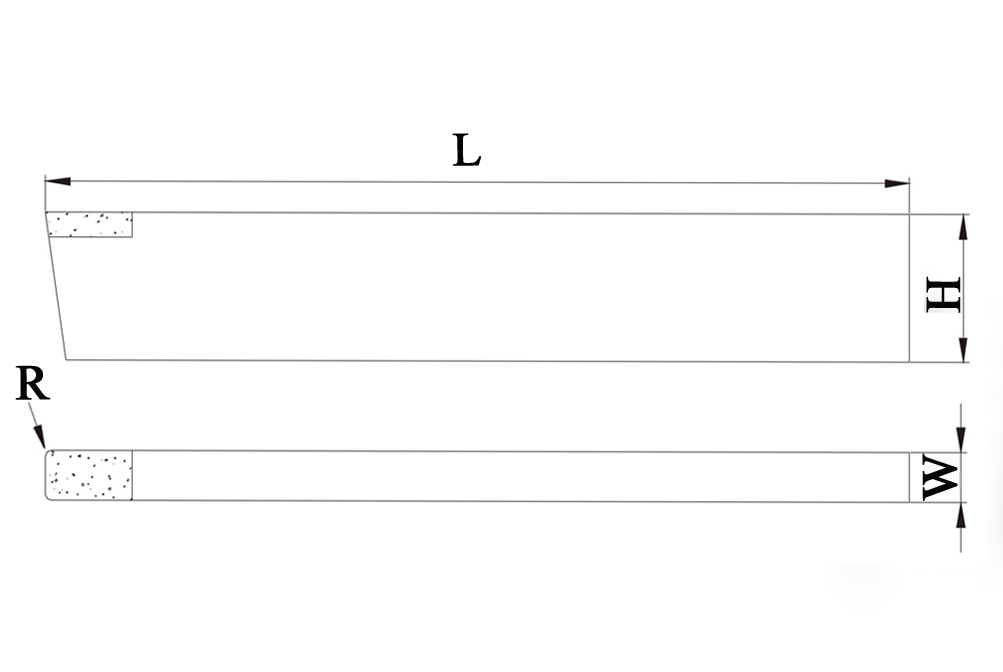

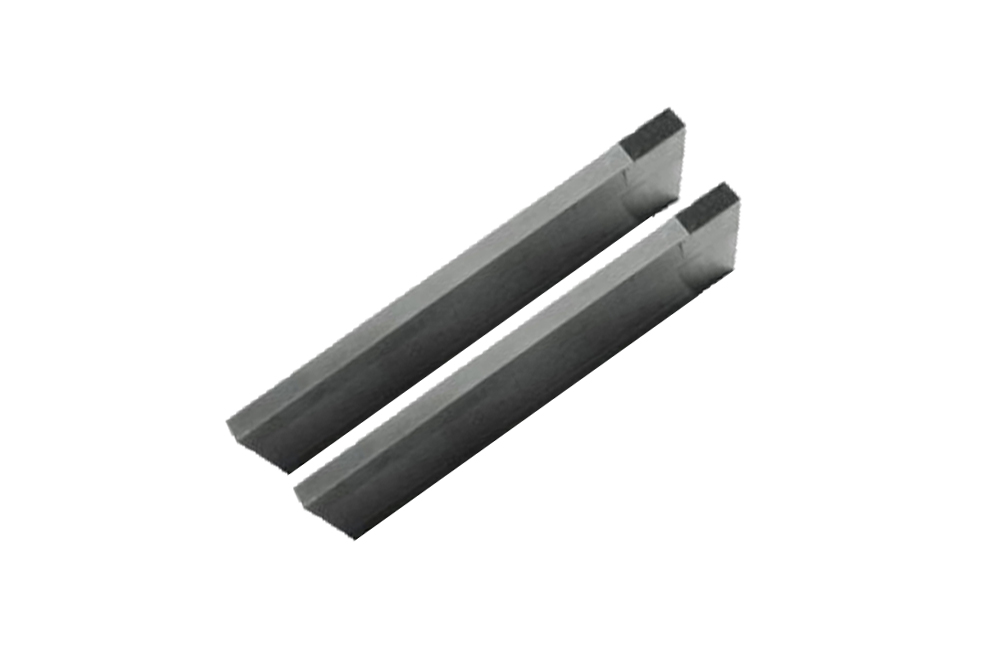

| PCD Rectangle Grooving Tool for pistons | ||||
|
|
||||
|
HLG01-1.0 |
Length |
Width |
Height |
Radius |
|
HLG01-1.0 |
70 |
1.0 |
12 |
0.1,0.2,0.3 |
|
HLG01-1.5 |
70 |
1.5 |
15 |
0.1,0.2,0.3 |
|
HLG01-2.0 |
70 |
2.0 |
18 |
0.1,0.2,0.3 |
|
HLG01-2.5 |
70 |
2.5 |
20 |
0.1,0.2,0.3 |

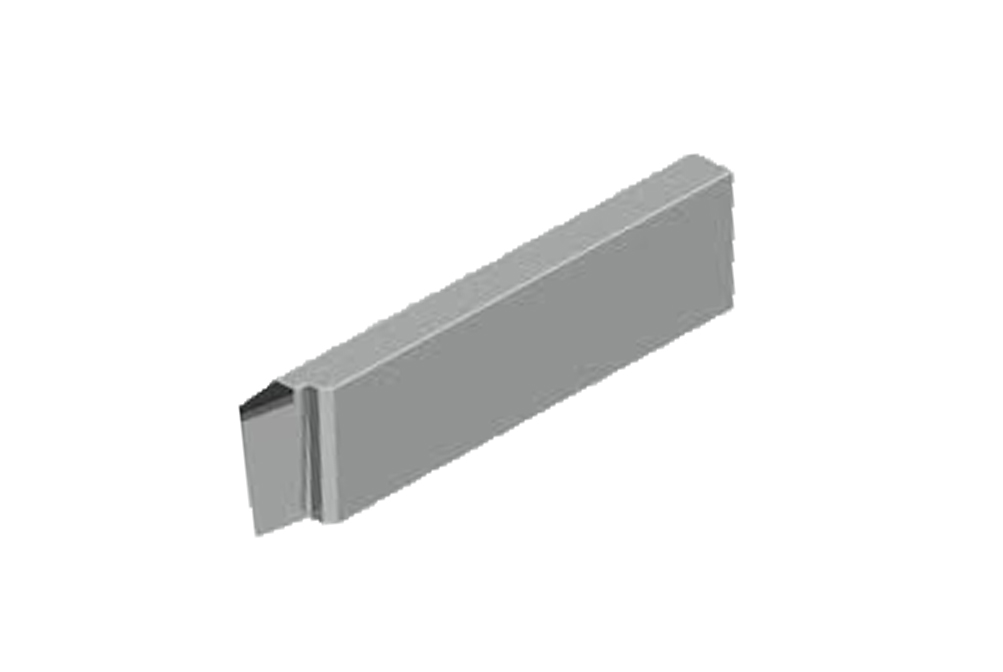

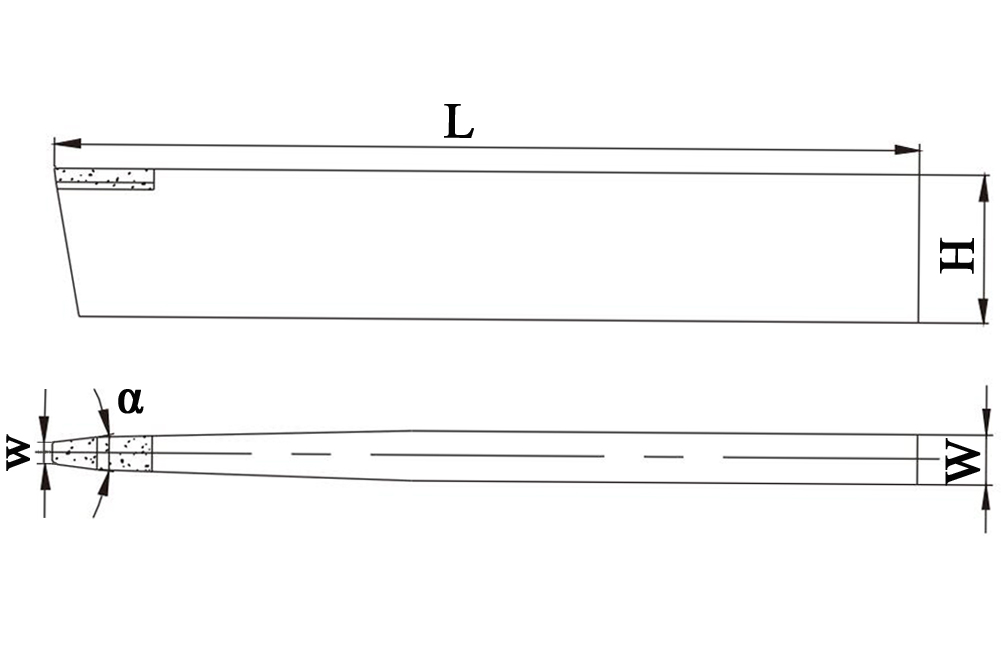

| PCD Wedge Grooving Tool for pistons | |||||
|
|
|||||
|
Model |
Length (L) |
width (w) |
Width |
Height |
Angle |
|
HLG02-4.0 |
70 |
1.575 |
4 |
12 |
15° |
|
HLG02-5.0 |
70 |
2.058 |
5 |
15 |
15° |

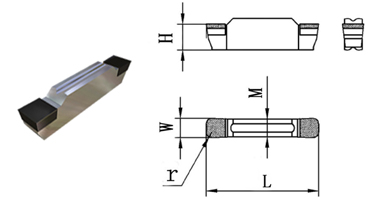

5. Square Tipped PCD/PCBN Grooving Cutters Specification
| Square Tipped PCD/PCBN Grooving Cutters | |||||
 |
|||||
|
Models
|
Dimension（mm）
|
||||
|
Length L
|
Height H
|
Width W
|
Mid-Width M
|
Radius r
|
|
|
HLGS200-02
|
16
|
3.5
|
2
|
1.6
|
0.2
|
|
HLGS300-02
|
21
|
4.8
|
3
|
2.35
|
0.2
|
|
HLGS300-04
|
21
|
4.8
|
3
|
2.35
|
0.4
|
|
HLGS300-08
|
21
|
4.8
|
3
|
2.35
|
0.8
|
|
HLGS400-02
|
21
|
4.8
|
4
|
3.3
|
0.2
|
|
HLGS400-04
|
21
|
4.8
|
4
|
3.3
|
0.4
|
|
HLGS400-08
|
21
|
4.8
|
4
|
3.3
|
0.8
|
|
HLGS500-02
|
26
|
5.8
|
5
|
4.1
|
0.2
|
|
HLGS500-04
|
26
|
5.8
|
5
|
4.1
|
0.4
|
|
HLGS500-08
|
26
|
5.8
|
5
|
4.1
|
0.8
|
|
HLGS600-02
|
26
|
5.8
|
6
|
5.0
|
0.2
|
|
HLGS600-04
|
26
|
5.8
|
6
|
5.0
|
0.4
|
|
HLGS600-08
|
26
|
5.8
|
6
|
5.0
|
0.8
|

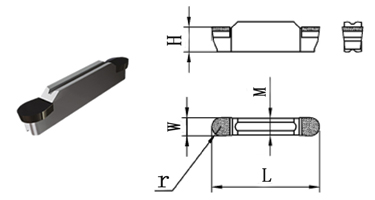

6. Radius Tipped PCD/PCBN Grooving Cutters Specification
|
Radius Tipped PCD/PCBN Grooving Cutters
|
|||||
 |
|||||
|
Models
|
Dimension（mm）
|
||||
|
Length L
|
Height H
|
Width W
|
Mid-Width M
|
Radius r
|
|
|
HLGR200-R1.0
|
16
|
3.5
|
2.0
|
1.6
|
1.0
|
|
HLGR300-R1.5
|
21
|
4.8
|
3
|
2.35
|
1.5
|
|
HLGR400-R2.0
|
21
|
4.8
|
4
|
3.3
|
2.0
|
|
HLGR500-R2.5
|
26
|
5.8
|
5
|
4.1
|
2.5
|
|
HLGR600-R3.0
|
26
|
5.8
|
6
|
5.0
|
3.0
|
Remark: Halnn also accept customized cutting tools, you only need offer the drawings of the insert you need. The long tool life that comes from Halnn PCD/CBN tools will help you reduce the total tooling costs if we confirm that your application can use PCD/CBN Tools.
