PCD Diameter Drilling Reamers Features and Advantages
(1) Increased dimensional accuracy and process reliability.
(2) Less process steps which means extensive freedom from burrs.
(3) Through and blind holes for the integrated expanding screw in the tool point.
(4) Optimal coolant delivery to the cutting edges.
(5) Ultra-long life of PCD Tools.
(6) Less tool changes which mean combination of multiple operations in one tool deliver savings on machine costs. Tool cost can be reduced by up to 50%.
PCD Diameter Drilling Reamers Application
(1) Automotive cylinder head
(2) Automotive hydraulic parts: AT valve body, regulator valve body
(3) Steering spool, transmission housing
(4) Other aluminum alloy parts (casting)
(5) Ceramic containing composite materials such as MMC
PCD Diameter Drilling Reamer Suited Materials
(1) Al, Mg, Si, Ti non-ferrous metal and so on,
(2) Fiber materials, Insulation materials, Plastics, Composite materials and so on.
PCD Diameter Drilling Reamers Specification
Remark: (1) This type pcd diameter reamer not only can be made with double blade, but also can be made 3 or more blades.
(2) We also accept customerized drawings and make design for you as your requirements.
(1) Increased dimensional accuracy and process reliability.
(2) Less process steps which means extensive freedom from burrs.
(3) Through and blind holes for the integrated expanding screw in the tool point.
(4) Optimal coolant delivery to the cutting edges.
(5) Ultra-long life of PCD Tools.
(6) Less tool changes which mean combination of multiple operations in one tool deliver savings on machine costs. Tool cost can be reduced by up to 50%.
PCD Diameter Drilling Reamers Application
(1) Automotive cylinder head
(2) Automotive hydraulic parts: AT valve body, regulator valve body
(3) Steering spool, transmission housing
(4) Other aluminum alloy parts (casting)
(5) Ceramic containing composite materials such as MMC
PCD Diameter Drilling Reamer Suited Materials
(1) Al, Mg, Si, Ti non-ferrous metal and so on,
(2) Fiber materials, Insulation materials, Plastics, Composite materials and so on.
PCD Diameter Drilling Reamers Specification
|
PCD Diameter Drilling Reamers
|
||||||
 |
||||||
|
Models
|

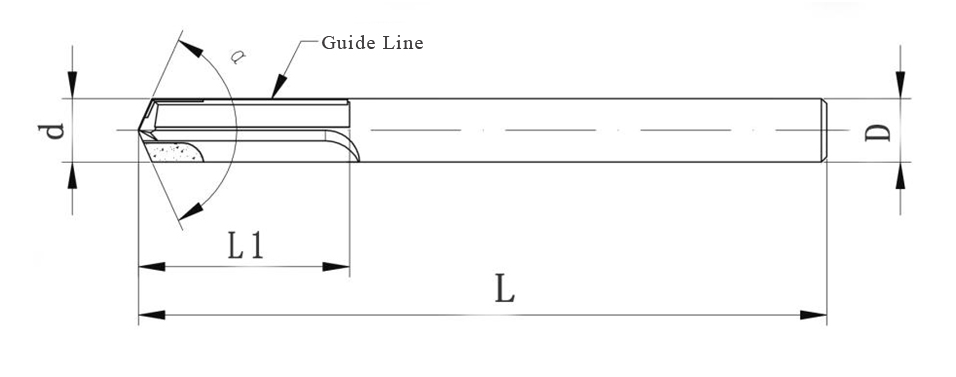

Dimension
|
|||||
| Shaft Diameter D | Blade Diameter d |
Lenth L
|
Depth L1
|
Angle a
|
Teeth No Z
|
|
|
SDR06048040-2S
|
6
|
4
|
80
|
40
|
130°
|
2
|
|
SDR06058040-2S
|
6
|
5
|
80
|
40
|
130°
|
2
|
|
SDR06068040-2S
|
6
|
6
|
80
|
40
|
130°
|
2
|
|
SDR08078040-2S
|
8
|
7
|
80
|
40
|
130°
|
2
|
|
SDR08088040-2S
|
8
|
8
|
80
|
40
|
130°
|
2
|
|
SDR10098040-2S
|
10
|
9
|
80
|
40
|
130°
|
2
|
|
SDR10108040-2S
|
10
|
10
|
80
|
40
|
130°
|
2
|
|
SDR12128040-2S
|
12
|
12
|
80
|
40
|
130°
|
2
|
|
SDR14148040-2S
|
14
|
14
|
80
|
40
|
130°
|
2
|
|
SDR16158040-2S
|
16
|
15
|
80
|
40
|
130°
|
2
|
Remark: (1) This type pcd diameter reamer not only can be made with double blade, but also can be made 3 or more blades.
(2) We also accept customerized drawings and make design for you as your requirements.
