PCD Ball Nose End Mill Application
Widely used for machining all kinds of curved surfaces and arc groove, such as nonferrous metals (copper, aluminum, zinc, titanium, etc.), ceramic, graphite and other non ferrous metal (quenching steel, die steel, cast iron, etc.).
PCD Ball Nose End Mill Features
1. High cutting speed and workpiece removal rate, which can improve the productivity.
2. With excellent impact resistance, this milling cutter can be achieve recutting and interrupted cutting.
3. Good wear resistance and long service life
4. Good surface roughness and high precision for hard alloy workpiece.
PCD Ball Nose End Mill Material
The tool bit of the PCD end mill is made of PCD diamond material, the cutter arbor is made of high quality hard alloy or tool steel.
PCD Ball Nose End Mill Specification
Remark: (1) This type pcd ball nose end mill not only can be made with single blade, but also can be made 2 or more blades.
(2) We also accept customerized drawings and make design for you as your requirements.
(3) Code Rules as follows:
Widely used for machining all kinds of curved surfaces and arc groove, such as nonferrous metals (copper, aluminum, zinc, titanium, etc.), ceramic, graphite and other non ferrous metal (quenching steel, die steel, cast iron, etc.).
PCD Ball Nose End Mill Features
1. High cutting speed and workpiece removal rate, which can improve the productivity.
2. With excellent impact resistance, this milling cutter can be achieve recutting and interrupted cutting.
3. Good wear resistance and long service life
4. Good surface roughness and high precision for hard alloy workpiece.
PCD Ball Nose End Mill Material
The tool bit of the PCD end mill is made of PCD diamond material, the cutter arbor is made of high quality hard alloy or tool steel.
PCD Ball Nose End Mill Specification

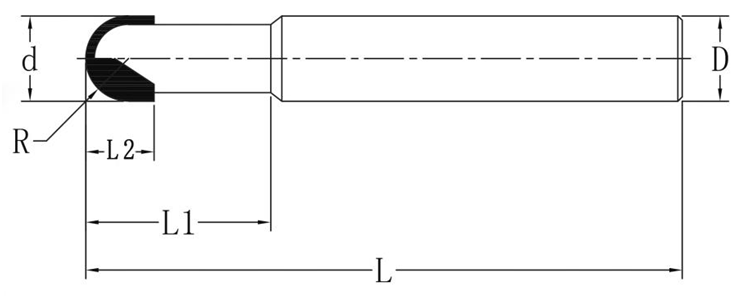

| PCD Ball Nose End Mill | |||||||
 |
|||||||
| Models | Shank Diameter （D） | Blade diameter （d） | Length （L） | Depth （L1 ） | Blade Length （L2） | Teeth No （Z） | Radius (R) |
| BM0603500503-1S | 6 | 3 | 50 | 5~8 | 3 | 1 | 1.5 |
| BM0604500804-1S | 6 | 4 | 50 | 8~10 | 4 | 1 | 2 |
| BM0605500805-1S | 6 | 5 | 50 | 8~10 | 5 | 1 | 2.5 |
| BM0606501006-1S | 6 | 6 | 50 | 10~15 | 6 | 1 | 3 |
| BM0607501006-1S | 6 | 7 | 50 | 10~15 | 6 | 1 | 3.5 |
| BM0808601507-1S | 8 | 8 | 60 | 15~20 | 7 | 1 | 4 |
| BM0809601508-1S | 8 | 9 | 60 | 15~20 | 8 | 1 | 4.5 |
| BM1010701508-1S | 10 | 10 | 70 | 15~20 | 8 | 1 | 5 |
| BM1010701509-1S | 10 | 11 | 70 | 15~20 | 9 | 1 | 5.5 |
| BM1210701809-1S | 12 | 10 | 70 | 18~25 | 9 | 1 | 5 |
| BM1212701810-1S | 12 | 12 | 70 | 18~25 | 10 | 1 | 6 |
| BM1414801810-1S | 14 | 14 | 70 | 18~25 | 10 | 1 | 7 |
| BM1615702211-1S | 16 | 15 | 70 | 22~28 | 11 | 1 | 7.5 |
| BM1616702212-1S | 16 | 16 | 70 | 22~28 | 12 | 1 | 8 |
Remark: (1) This type pcd ball nose end mill not only can be made with single blade, but also can be made 2 or more blades.
(2) We also accept customerized drawings and make design for you as your requirements.

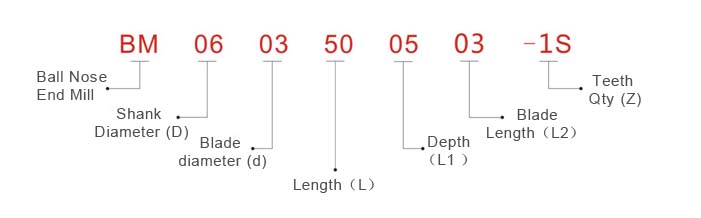

(3) Code Rules as follows:
