Introduction
In the world of precision machining, deep hole drilling is a critical process used across various industries such as aerospace, automotive, and oil & gas. To achieve the required depth and precision, the deep hole BTA drill tool is an essential piece of equipment. At Halnn, we specialize in providing top-quality BTA drill tools that meet the rigorous demands of modern manufacturing. This article explores the specifics of deep hole BTA drill tools, their applications, advantages, and how Halnn stands out as a leader in this field.

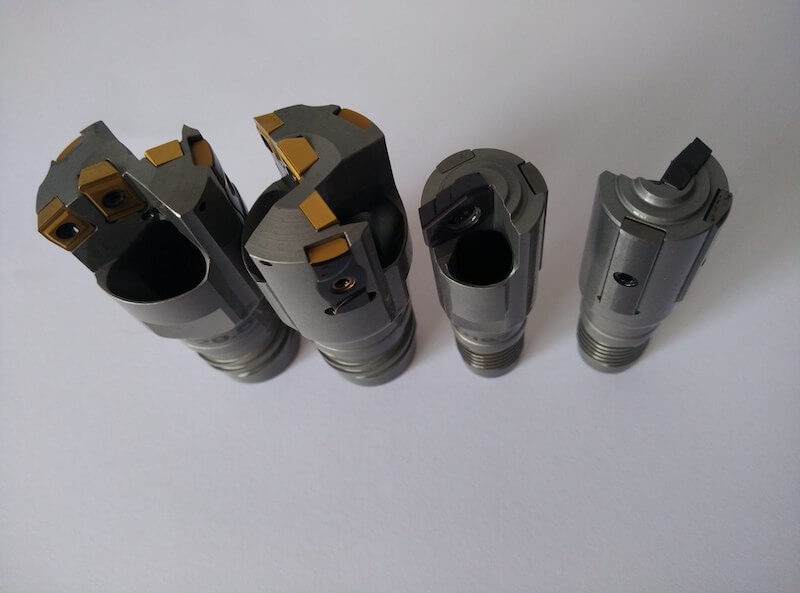

What is a Deep Hole BTA Drill Tool?
A deep hole BTA drill tool is a specialized drill designed to create holes with a depth-to-diameter ratio of more than 10:1. Named after the Boring and Trepanning Association, this tool is engineered to handle the challenges of drilling deep, precise holes in a variety of materials.

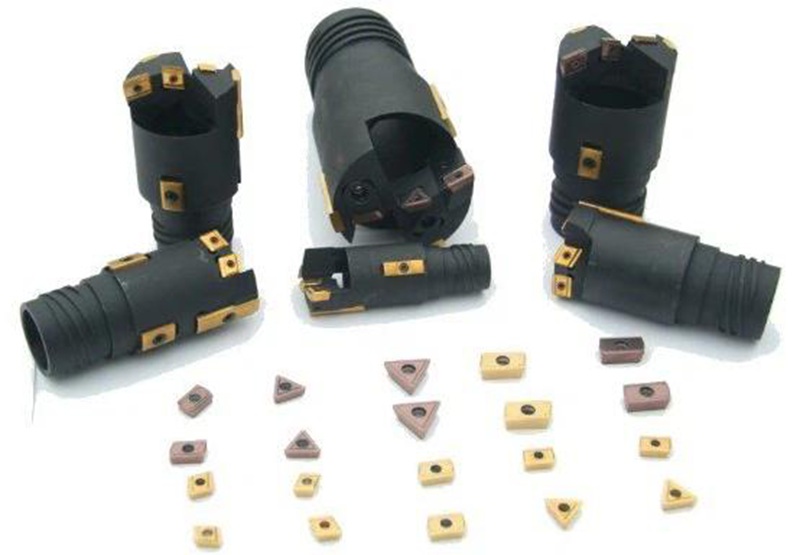

Components of a BTA Drill Tool:
Drill Head: The cutting end of the tool, often made from high-grade carbide to ensure durability and efficiency.
Guide Pads: Positioned around the drill head to maintain hole straightness and accuracy.
Drill Tube: Channels coolant directly to the cutting zone while also evacuating chips from the hole.
The design of the BTA drill tool ensures effective coolant management, chip evacuation, and minimal tool deflection, making it ideal for deep hole drilling tasks.
Key Features of Deep Hole BTA Drill Tools
Precision and Accuracy
The deep hole BTA drill tool is renowned for its ability to produce precise, straight holes. The guide pads and robust construction minimize deflection, ensuring that the hole remains on course throughout the drilling process.
Efficient Coolant Management
A significant feature of BTA drill tools is their internal coolant delivery system. Coolant is pumped directly to the cutting edge, which helps in cooling the tool, lubricating the cutting surface, and efficiently removing chips from the hole.
Durability and Longevity
Made from high-quality materials, including carbide tips, BTA drill tools are built to last. Their durable construction allows them to withstand the high pressures and temperatures associated with deep hole drilling.
Applications of Deep Hole BTA Drill Tools
Aerospace Industry
In the aerospace sector, the need for precision and reliability is paramount. BTA deep hole drills from Halnn are employed in manufacturing critical components such as landing gear, engine parts, and structural components, where deep, accurate holes are essential.
Automotive Industry

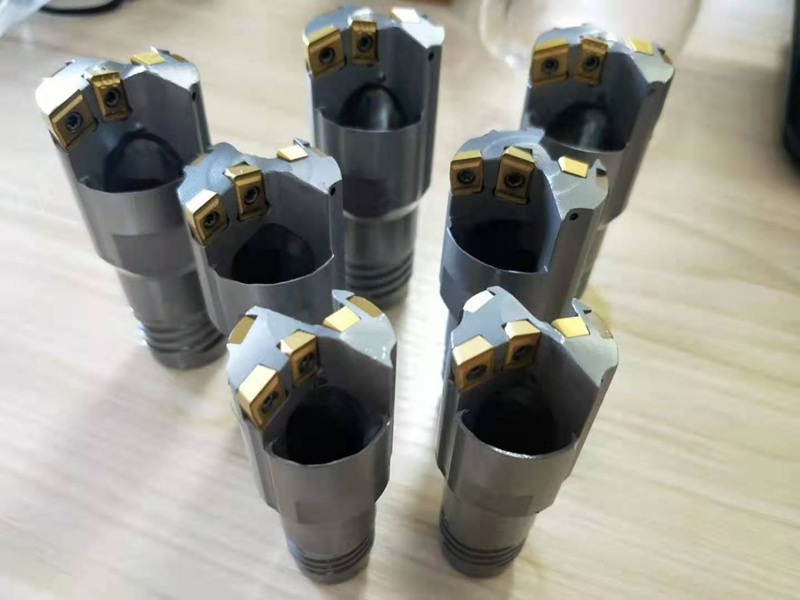

The automotive industry benefits greatly from BTA indexable deep hole drills in the production of engine blocks, transmission components, and drive shafts. The precision offered by these drills ensures that automotive parts meet the stringent requirements for performance and safety.
High Material Removal Rate
One of the primary advantages of BTA deep hole drills is their ability to achieve a high material removal rate. This efficiency translates into faster drilling times and increased productivity in manufacturing operations.
Enhanced Tool Life
The carbide tips and robust construction of BTA drill tools contribute to their extended lifespan. This longevity reduces the need for frequent tool replacements, thereby lowering overall operational costs.
Superior Hole Quality
BTA drills produce holes with smooth surfaces and precise dimensions, reducing the need for secondary finishing processes. This quality is particularly important in industries where the internal surface finish of the hole can impact the performance of the final product.

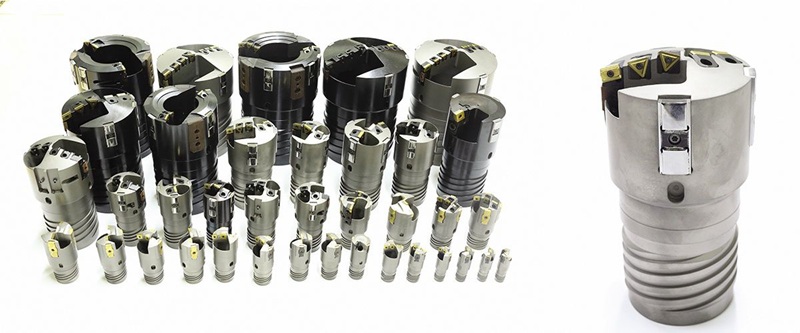

Halnn’s Deep Hole BTA Drill Tools
Product Range and Specifications
At Halnn, we offer a comprehensive range of BTA deep hole drilling heads and related tools. Our product line includes various sizes, materials, and configurations to meet the diverse needs of our clients. Each tool is engineered for optimal performance, ensuring that you achieve the best possible results in your drilling operations.
Customization and Expert Support
Understanding that each drilling application is unique, Halnn provides customization options to tailor our BTA drill tools to your specific requirements. Whether you need a particular drill size, length, or material, our team of experts is ready to assist you in developing the perfect tool for your needs.
Quality Assurance
Quality is the cornerstone of Halnn’s manufacturing process. Every BTA indexable deep hole drill we produce undergoes rigorous testing and inspection to ensure it meets the highest industry standards. Our commitment to quality ensures that you receive a reliable tool that delivers exceptional performance.
How to Select the Right BTA Drill Tool
Choosing the right deep hole BTA drill tool is crucial for the success of your drilling operations. Here are some key factors to consider:
Material Compatibility
Different materials have varying properties that can affect the performance of the drill. Halnn offers expert guidance on selecting the right drill for materials such as steel, titanium, and alloys.
Drill Size and Length
The size and length of the drill should be chosen based on the depth and diameter of the hole required. Our team at Halnn can help you determine the optimal specifications for your project.
Coolant and Chip Management
Effective coolant and chip evacuation are critical for maintaining drill performance and preventing tool damage. Halnn’s BTA drills are designed with advanced coolant management systems to ensure smooth operation.
Maintenance and Care for BTA Drill Tools
Regular Inspection
To maintain the performance and longevity of your BTA drill tools, regular inspections are essential. Checking for wear and tear, especially on the carbide tips and guide pads, can help prevent costly tool failures.
Proper Handling and Storage
Proper handling and storage of your drill tools are key to preserving their quality. Halnn provides detailed guidelines on how to care for and store your BTA drills to extend their lifespan.
Re-sharpening and Refurbishment Services
Even the most durable drills may require re-sharpening or refurbishment over time. Halnn offers professional re-sharpening services to restore your tools to their original condition, ensuring they continue to perform at their best.
FAQs About Deep Hole BTA Drill Tool
1. What is a deep hole BTA drill tool?
A deep hole BTA (Boring and Trepanning Association) drill tool is a specialized cutting tool designed for drilling deep holes with a high depth-to-diameter ratio. It is used in industries such as aerospace, automotive, and oil & gas for creating precise, straight holes in various materials.
2. How does a BTA drill tool differ from other deep hole drilling tools?
Unlike conventional deep hole drills, BTA drill tools have an internal coolant system that delivers coolant directly to the cutting zone, aiding in chip evacuation and reducing tool wear. This design allows for higher precision and efficiency in deep hole drilling operations.
3. What materials can be drilled using a deep hole BTA drill tool?
Deep hole BTA drill tools can be used to drill a wide range of materials, including steel, titanium, aluminum, and other alloys. The selection of the drill tool often depends on the specific material being worked on and the desired hole characteristics.
4. What are the key components of a deep hole BTA drill tool?
The main components of a BTA drill tool include the drill head (which contains the cutting edges), guide pads (to maintain hole accuracy), and the drill tube (which helps with coolant delivery and chip evacuation).
5. What is the typical depth-to-diameter ratio that can be achieved with a BTA drill tool?
A BTA drill tool can achieve a depth-to-diameter ratio of more than 10:1, making it ideal for applications requiring deep, straight holes with minimal deviation.
6. How do I choose the right BTA drill tool for my application?
When choosing a BTA drill tool, consider factors such as the material to be drilled, the required hole depth and diameter, and the specific application requirements. Consulting with experts, like those at Halnn, can help ensure you select the optimal tool for your needs.
7. What industries typically use deep hole BTA drill tools?
Deep hole BTA drill tools are commonly used in industries that require precise, deep drilling, such as aerospace (for landing gear and engine components), automotive (for engine blocks and drive shafts), and oil & gas (for drilling pipes and casings).
8. How do I maintain and care for my deep hole BTA drill tools?
Regular inspection, proper handling, and storage are key to maintaining BTA drill tools. Checking for wear on the cutting edges and guide pads, ensuring proper coolant flow, and following manufacturer guidelines for storage can extend the tool’s lifespan.
9. Can BTA drill tools be customized for specific applications?
Yes, many manufacturers, including Halnn, offer customization options for BTA drill tools. This allows the tools to be tailored to specific application needs, such as unique hole dimensions or challenging material properties.
10. What are the benefits of using Halnn’s deep hole BTA drill tools?
Halnn’s deep hole BTA drill tools are known for their precision, durability, and efficiency. With advanced coolant management, superior chip evacuation, and customizable options, Halnn’s BTA drills are designed to meet the most demanding deep hole drilling requirements.
11. How can I improve the performance of my deep hole BTA drilling operations?
To improve performance, ensure you are using the correct drill tool for your material and application, maintain proper coolant flow, and regularly inspect and sharpen the drill tips. Additionally, partnering with a reliable supplier like Halnn can provide access to high-quality tools and expert advice.
12. What are the common challenges in deep hole drilling, and how does a BTA drill tool address them?
Common challenges include tool deflection, heat buildup, and inefficient chip evacuation. BTA drill tools address these by incorporating guide pads to reduce deflection, using internal coolant systems to manage heat, and designing the tool for effective chip removal.
Conclusion
The deep hole BTA drill tool is an indispensable asset in industries that demand precision, efficiency, and reliability. Halnn is dedicated to providing high-quality BTA drill tools that meet the diverse needs of our clients. With our extensive product range, customization options, and commitment to quality, Halnn is your trusted partner for all deep hole drilling solutions.
