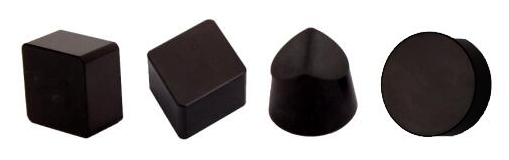

BN-S20 Solid CBN Insert---Specific for HSS Rolls
Basic Information of HSS Rolls:
High-speed steel roll is one type hot roll materials that the advent late, but developed rapidly,used widely, has good thermal stability. In the temperature, rolls surface has high hardness and excellent abrasive resistance, and high speed steel rolls have good Permeability, the surface hardness and working layer hardeness is stable, so that the rolls have good abrasive resistance and impact toughness.
Because of excellent advantages of the rolls, it requires high on the cutting tools. The cutting tools for machining high speed steel rolls need have high hardness, abrasive resistance, heat resistance and impact toughness.
The advantages of BN-S20 machining HSS Steel Rolls
(1) The hardness of BN-S20 is about HRC95~100, which have good abrasive resistance, and can machining HSS Rolls with a long time, to make sure the surface quality.
(2) It belongs to solid cbn insert, which can be used for heavy turning HSS Rolls with large allowance, improve the processing efficiency.
(3) In the process of BN-S20 solid cbn insert machining HSS Rolls, we need to adopt dry cutting process, which not only can reduce the production costs, but also protect the environment.
The cutting parameters of BN-S20 process HSS Rolls
|
Materials |
Cutting Speed Vc(m/min) |
Cutting Depth ap(mm) |
Feed Rate Fr(mm/r) |
CBN Insert Grade |
|
HSS Rolls(Hardness>HRC45) |
50~150(Roughing) |
1~10 |
0.15~0.7 |
BN-S20 |
|
60~250(Finishing) |
<1 |
0.05~0.35 |
Common CBN Insert Models for machining HSS Rolls as follows:
Common Models: SNMN120712,SNMN120412,SNMN120408,RNMN120400,ect.
Tool Holder: For large scale rolls, we need to use heavy cnc lathe, and the tool holder usually use 40*40, and the angle need to choose 45 degree. Some small scale rolls, we need to use 25*25 or 32*32 tool holder. We can choose the angle depending on the “Length-Diameter Ratio”,thin rolls use 90 degree or 75 degree rolls, Rough rolls, we usually use 45 degree rolls or arc rolls.
One application case for machining HSS Rolls
|
BN-S20 solid cbn insert machining HSS Rolls |
Materials: HSS Rolls,
Hardness:HSD90,
Insert Model:BN-S20 RCMX120700,
Cutting Parameters:Vc=50m/min, Fr=0.2mm/r |
 |
|
Insert Materials |
Machining Beats |
Tool Life/blade |
Efficiency |
|
Halnn BN-S20 |
2h |
25 grooves/blade |
Improve 6 times |
|
Carbide Insert |
12h |
3 grooves/blade |
/ |
