Halnn launched BN-S20 for processing spraying parts
Thermal spray welding typically include nickel-based alloys, iron-based alloy and cobalt-based alloy spray powder, according to different alloy spray coating layer, spray welding hardness were applied to repair mechanical parts or to increase the metal surface properties; Spray coating thickness will be from 0.01mm to a few millimeters; Spraying coating/spray layer hardness generally≥HRC50; Part spray welding layer hardness≥HRC65; Machine machining cutting tool of spray coating layer and spray welding layer always is to limit hard surface later period processing technology problems. Compared with the sprayed coating, spray welding layer owns more significant advantage. However, due to the temperature up to 900 ℃ after matrix local heating in remelting process, it will have a greater thermal deformation.
BN-S20 is better suited for the materials with high impact load, high surface hardness ma, as well as part structural steel, nickel-chromium stainless steel, cast iron and other materials.

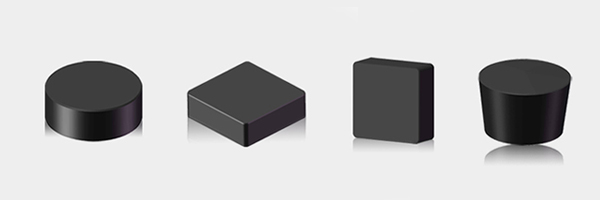

BN-S20 solid cbn insert machining spray coating spray welding parts
The performance of BN-S20 solid cbn inserts processing spray coating spray welding layer:
1. BN-S20 solid cbn insert is suitable for machining high hardness spray welding layer of the surface hardness HRC45-79, such as machining Ni60, Fe65 and tungsten carbide spray welding layers of surface hardness HRC65 or more.
2. BN-S20 solid cbn inserts is a cubic boron nitride grade, Halnn Tool independent research and development aiming at high hardness and processing spray welding layer is a national key scientific and technological project results, utility model patents products.
3. Suit for cutting processing spray coating and spray welding hard surface as following: A variety of hard surface cutting processing about flame spraying, powder coating oxyacetylene flame, oxyacetylene flame wire spray, oxyacetylene flame spray, HVOF, arc spraying, plasma spraying, atmospheric plasma spraying, cutting low pressure plasma spraying etc..
4. Suitable for cutting the following materials spray welding layer and sprayed layer: WC spray welding layer, nickel-based alloy spray welding layer, cobalt-based alloy build-up welding layer, Hastelloy spray welding layer, Ni60 spray welding layer, 88WC12CO, 86WC10CO4Cr and carbonized chromium removal spray welding layer; and suitable for high hardness alloy steel roughing and finishing.
BN-S20 solid cbn insert processing spray welding layer and build-up welding layer cutting parameters:
Application Case A:
Processing cobalt-based alloy spray coating materials,
Spray coating layer thickness: 2mm;
Spray coating layer hardness: HRC60;
Linear speed: Vc = 70--130m/min;
Feed Rate: 0.7-0.8mm/r;
Depth of cut: ap = 1.7mm;
Cutting tool life: the tool life/blade will be about 150 minutes; total 8 cutting edge;
Application Case B:
Machining nickel base alloy spray welding layer,
Linear Speed: Vc = 180m/min high-speed cutting;
Tool life is 6--10 times of ceramic inserts.
BN-S20 solid cbn insert is a machine folder indexable inserts, also suit for processing spray welding layer and spray layer hard surface: WC spray welding layer, nickel-based alloy spray welding layer, cobalt-based alloy build-up welding layer, Hastelloy spray welding layer, Ni60 spray welding layer, 88WC12CO, 86WC10CO4Cr and carbonized chromium spray welding layer processing; BN-S20 cutting tool can process hardness over HRC65 spray welding layer and the spray layer,BN-S20 is a composite hard surface machining and superhard processing cutting tools special grades.
