Halnn BN-K1 grade CBN tool efficient processing Slurry Pump

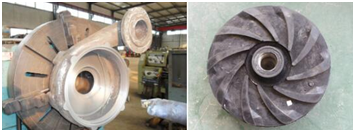

Slurry pump, as one of the main equipments in the mining, electric power, metallurgy, coal and other industries, is commonly used to transport slurry containing corrosive solid particles, which is required to have high wear resistance and corrosion resistance.

Casting-formed slurry pump parts have casting defects on the surface of the blank, and the slurry pump impeller is an interrupt cutting condition, which requires higher performance of the cutting tool.



When the conventional carbide tool processing slurry pump, there are often problems such as severe wear, frequent tool change, which affects production efficiency and product quality. At this time, Halnn solid CBN tool is selected, which not only can rough turning slurry pump blank with large allowance, but also has long tool life, reduce the frequency of tool change and improve production efficiency.

The following is a detailed introduction to the CBN grade and cutting parameters of the Halnn CBN tool processing slurry pump.


1. Halnn CBN tool grade for processing slurry pump

CBN grade  Machining process  Cutting condition  Advantages  Drawing
BN-K1 Rough and finishing Strong intermittent cutting Excellent collapse resistance and high temperature fracture resistance。

2. Cutting parameters of Halnn CBN tool for processing slurry pump

Recommended cutting parameters
Workpieces materials
Cutting speed
Vc(m/min)
Cutting depth
ap(mm)
Feed rate
Fr(mm/r)
CBN grade
Slurry Pump
35-120(Rough)
1-10
0.15-1.0
BN-K1
60-200(Finishing)
≤1
0.05-0.35

3. Case parameters of Halnn BN-K1 grade CBN tool processing slurry pump

Halnn BN-K1 grade CBN tool processing slurry pump
Workpiece material:Cr26
Machining parts:Pump casing end
Tool type:BN-K1
Cutting parameters:Vc=75m/min,Fr=0.1mm/r,ap=3.5mm
Process method:dry cutting
Tool materials  Cutting speed(Vc) Tool life  Failure
Halnn BN-K1 grade CBN tool 75m/min 85pcs/edge  Normal wear
A brand of ceramic tool 35m/min 10pcs/edge  Collapse
