Halnn super hard CBN inserts BN-K1：process the Mortar pump
The mortar pump mainly refers to the water pump used for conveying slurry, generally centrifugal pump is the main type.The flow passage component of mortar pump usually adopts high chromium wear-resistant alloy with corrosion resistance which has the characteristics of high efficiency, energy saving, wear resistance and reliable operation. For example, the wear-resistant sleeve in mortar pump is to obtain wear-resistant and efficient performance, using high chromium cast iron as the main materials.
The wear-resistant sleeve cast brings problems to manufacturing industry because high hardness of components is hard to process. The traditional hard alloy cutter can’t process it. It will appear the serious collapse inserts when it processes which not only affect the product quality, but also seriously affect the production efficiency.
The manufacture found our company online. Halnn Super hard, Professional Hard Material Processing Tool Leader. Since its was built , it has been adhering to the business views of "focus, innovation, efficiency and cooperation". With the spirit of solidarity, excellence and self-improvement, Halnn Super hard constantly improves the efficiency, high quality and long life of cubic boron nitrite blades for manufacturing industry. It has a high reputation in super hard academic circles.
The high chromium iron has own inserts number--CBN inserts BN-K1 which instead of hard alloy cutter to process the wear-resistant sleeve of mortar pump
Now we introduce an example dimension: the Halnn super hard CBN inserts BN-K1 to process the wear-resistant sleeve of mortar pump
Name:mortar pump
Materials:cr19-26

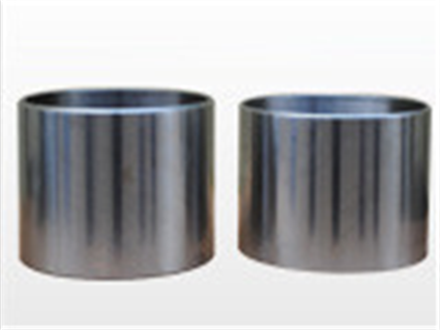

Diameter: 138mm, Thickness:5mm High:50mm
Processing site: excircle
Inserts materials:BN-K1 SNMN120712-8S
Type of tool holder:CSRNR3232M1207
Rotate speed:N=120r/min feed per revolution:Fr=0.25mm The depth of the cutter: Ap=2mm
Processing method: dry cutting
Machining effect: Halnn Super hard CBN inserts BN-K1 can process 600 wear-resistant sleeves of mortar pump with one cutting edge. Compared with cemented carbide tools, the efficiency is greatly improved and the cost is well controlled.
