Halnn PCD Tools For Machining Aluminum Alloy
Category：News
PublishedDate：2018-08-30
Part 1 The Cutting Tools Materials for Aluminum Alloy
When machining Aluminum Alloy, if we don’t choose the proper cutting tool materials, it usually has some problems, such as sticking cutters and chips removal, which will lead to the cutting tools wear rapidly.
In current times, it has 3 types cutting tool materials for cutting aluminum alloy: Tungsten Carbide, Ceramics and Polycrystalline Diamond (PCD).
When we use TC Materials (such as YG8) machine aluminum alloy, the wear resistance is not good because of high content silicon, the silicon will affect with the tungsten which will accelerate the wear.
Compared with tungsten carbide inserts, ceramic cutters will have higher hardness, better wear resistance and high temperature performance, however ceramic is brittle, and the thermal conductivity will be easy to cause cracks and damage the blade.
So PCD Tools will be the first choice for machining aluminum alloy materials for large scale industry production. PCD Tools can be used for machining aluminum alloy materials with high precision, high efficiency, high stability and high surface finish because of the characteristics of high hardness, high abrasive resistance, high conductivity and low friction coefficient.
Part 2 Halnn PCD Grade for Machining Aluminum Alloy
|
Grade |
Granularity（μm） |
Characteristics |
Application |
|
CDW850 |
Submicron |
Ultra-fine grain structure, strong edge sharpness and edge durability |
High precision machining, mirror surface machining, suite for aluminum alloy that required high on the chipping performance, mainly used for machining Ti alloy and other composites |
|
CDW002 |
2μm |
High cobalt content, Good electrical machine performance, excellent toughness, Good roughness machining, more convenient for tool processing |
Mainly used for engrave milling cutter and thread cutting tool, and also cutting tools for wear-resistant parts, used in woodworking saws, particleboard and the tools for machining silicon aluminum alloy |
|
CDW005 |
5μm |
Excellent electric spark and machine ability good toughness, wear resistance and edge quality |
It suits for good surface quality processing, mainly used for machining PMMA, Silicon alloy and metal cell phone shell outline nd used in the wood cutting tools, saws industry |
|
CDW010 |
10μm |
Universal PCD Grade, good toughness and high abrasive resisitance |
Suit for single tool for rough machining, especially for wood molding, medium and low silicon aluminum alloy parts (such as piston). |
|
CDW025 |
25μm |
High wear resistance and edge quality |
Suit for high Silicon Aluminum alloy, MMC, Tungsten carbide and ceramic, graphite, wear resistant parts, mainly used in wood finishing insert and saws |
|
CDW302 |
2~30μm |
Mixed 2μm and 25μm,good wear resistance and edge quality and edges strength |
It mainly used for machining MMC, high Silicon Aluminum alloy, high strength cast iron and other application. |
Part 3 Different PCD Tools Type for Machining Aluminum Alloy
PCD Tools can be used for different process, such as turning, milling, drilling, grooving, ect. Halnn can offer different types pcd tools for all these condition.

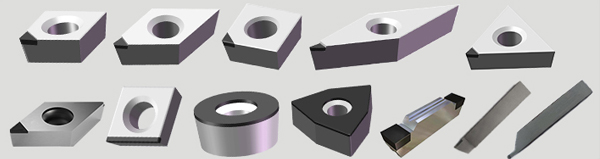

1.PCD Inserts for Turning or Milling Aluminum Alloy

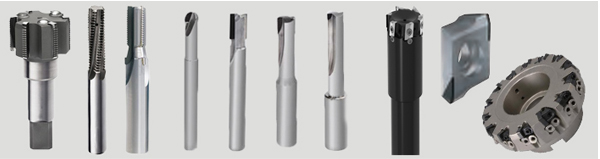

2. PCD End Mills for Milling Aluminum alloy

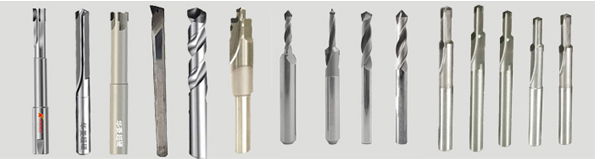

3. PCD Drill Bits or PCD Reamers For Drilling Aluminum Alloy
Part 4 The recommend Cutting parameters of machining aluminum alloy
|
Component Materials |
Recommend PCD Grade |
Cutting Condition |
|
Vc（m/min） |
Fr（mm/r） |
ap（mm） |
|
Aluminum alloy |
4-8%Si |
CDW010 |
CDW302 |
CDW005 |
CDW850 |
100-5000 |
0.03-0.5 |
0.1-3.0 |
|
9-13%Si |
CDW010 |
CDW302 |
|
CDW850 |
100-3000 |
0.03-0.5 |
0.1-3.0 |
|
＞13%Si |
CDW010 |
CDW302 |
CDW025 |
CDW850 |
100-2500 |
0.03-0.4 |
0.1-2.5 |
