High Chromium cast iron is the third Generation white cast iron after common white cast iron and ni-hard cast iron. In Current times, high chromium cast iron has been the most suitable materials for abrasive resistant materials, and is widely used in mining industry, power industry, and other refractories. Typical component include mill rolls, industry pump(slurry pump, Mud pump) ect. Because high chromium cast iron workpiece belong to large scale castings, the blank will have some defects: Uneven margins,stomach,sand. So choose the right cutting tools will be very important.

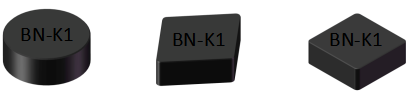

Specific for all the defects and working problems, Halnn researched special cbn grades BN-K1, the characteristics are as follows:
1. Suited Materials: Chilled Cast Iron, Hi-Ni-Cr Cast Iron and High harness alloy cast iron
2. Suited Machining Type: Roughing
3. Typical Application: Alloy Cast Iron, Slurry Pump, Wear resistant castings
Tool Solutions for Impurities pump
Slurry Pump (Impurities pumps, mud pumps）pump body, impeller, liner and cylinder liner,（Materials：Cr15Mo3,Cr15Mo2Cu, KmTBCr12,Cr20,Cr26 high chromium alloy cast iron, white cast iron）
Common cbn grade：BN-K1 and HLCBN
Advantages:High hardness, high strength and abrasive resistance, excellent impact resistance
Common Insert Model: SNMN120712,SNMN120708,CNMN120412,RNMN120400,SNMN120412.
Application Case for machining high chrome cast iron component:
|
BN-K1 Solid CBN Insert turning high chrome cast iron pump impeller |
 |
Component |
Slurry Pump Impeller |
|
Materials |
High Chrome cast iron |
|
Selected Insert |
BN-K1 SNMN120712 |
|
Cutting Parameters |
Ap=2.5mm,Fr=0.25mm/r,Vc=45m/min |
|
Insert Materials |
Tool Life |
Failure Mode |
|
Halnn BN-K1 |
11pcs |
Normal Wear |
|
Other Solid CBN |
3pcs |
Damage Rupture |
|
BN-K1 Solid CBN Insert machining high chrome cast iron pump body |
 |
Component |
Slurry Pump Body |
|
Materials |
High Chrome White iron |
|
Selected Insert |
BN-K1 CNMN120712 |
|
Cutting Parameters |
Ap=2.5mm,Fr=0.12mm/r,Vc=75m/min |
|
Insert Materials |
Tool Life |
Failure Mode |
|
Halnn BN-K1 |
85pcs |
Normal Wear |
|
Other Solid CBN |
35pcs |
Damage Rupture |
If you would like to get the whole solutions for machining pump, please feel free to contact with us info@halnntools.com
