Rough Machining Slurry pump impeller with CBN Inserts
Category：News
PublishedDate：2017-08-02
The impeller is one of the main parts for slurry pump , it uses high chromium cast iron as the main materials, such as Cr26. Each impeller has 5~12 impellers, it belongs to interrupted turning condition, so it will require high on the cutting tools.
In current times, CBN Inserts is the most suitable cutting tools for interrupted turning slurry pump impeller, because cbn insert is the hardest materials for machining ferrous metals, and especially BN-K1 solid cbn inserts are most widely used.
The advantages of BN-K1 Solid CBN Insert:
(1) The content of cubic boron nitride is 90%, high hardness, excellent wear resistance
(2) Use non-metal ceramic as binder, improve the impact resistance of the cbn insert
(3) It can be used for large margine, improve the efficiency.
(4) Use dry cutting type, reduce the production costs, and obtain good working environment.

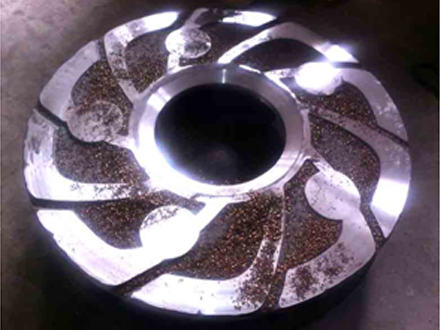

One application case for interrupted turning impeller of pump
Workpiece Materials: High chromium Cast Iron
Workpiece Name: Slurry pump Impeller
Workpiece Diameter: 600mm
Insert Model: BN-K1 SNMN
Machining Process: Roughing, Dry Cutting
Cutting Data:N=10r/min, Fr=0.25mm/r, Cutting Depth:1.5mm
Testing Performance: BN-K1 solid cbn inserts have better wear resistance and surface quality.
