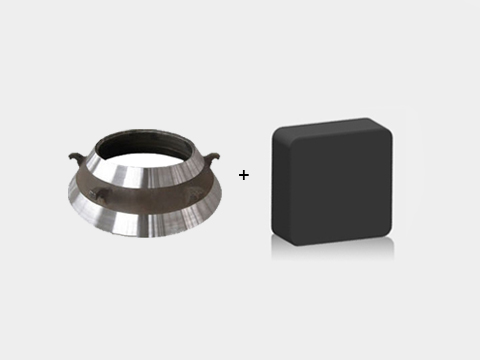

BN-S20 milling the Concave
|
|||
|
Machining Part:The Concave
|
Machining Materials:High manganese steel
|
||
|
Workpiece Hardness:Above HRC56
|
Inserts Grade:BN-S20 SNGN120712
|
||
|
Cutting Type:Dry Cutting
|
Cutting Parameters:ap=2.5mm,Fr=0.2mm/r,Vc=135m/min
|
||
|
Testing Performance
|
|||
|
Inserts Materials
|
Linear Speed(m/min)
|
Feed rate（mm/r）
|
Lifetime/edge
|
|
Halnn BN-S20
|
135
|
0.2
|
27
|
|
Carbide Inserts
|
35
|
0.15
|
1
|

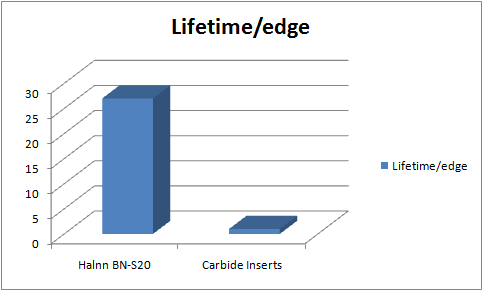

From above tablet, we can see that the tool life of Halnn BN-S20 will be about 27 times of carbide insert, and the linear speed can be 4 times more than that.
