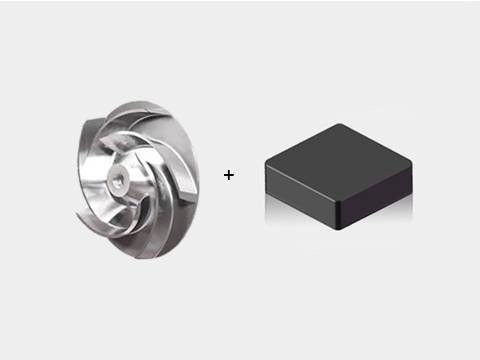

BN-K1 solid cbn inserts processing Pump Impeller
|
|||
|
Machining Part:industry pump impeller
|
Machining Materials:High Chromium Cast iron
|
||
|
Workpiece Hardness:HRC 60
|
Inserts Grade:BN-K1 CNMN120712
|
||
|
Cutting Type:Interrupt Turning,Dry Cutting
|
Cutting Parameters:ap=5mm,f=0.1mm/r,Vc=75m/min
|
||
|

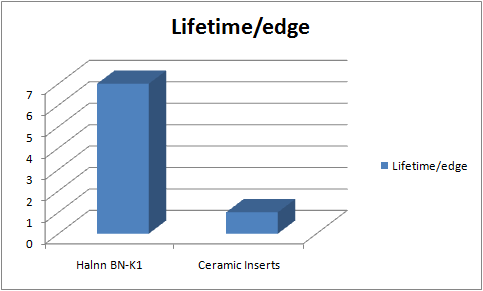

Testing Performance
|
|||
|
Inserts Materials
|
Linear Speed(m/min)
|
Lifetime/edge
|
Failure mode
|
|
Halnn BN-K1
|
75
|
7
|
Normal wear
|
|
Ceramic Inserts
|
35
|
1
|
Chipping
|
From above tablet, we can see that the tool life of Halnn Bn-K1 is 7 times of ceramic insert.
