BN-S20 Solid CBN Insert Processing Spraying Roller
|
|||
|
Machining Part:Hardened Steel roll
|
Machining Materials:Cobalt-nickel Alloy Spray
|
||
|
Workpiece Hardness:HRC 60
|
Inserts Grade:BN-S20 RNMN
|
||
|
Cutting Type:Dry Cutting |
Cutting Parameters:ap=1.7mm,Fr=0.7~0.8mm/r,Vc=70m/min
|
||
|
Testing Performance
|
|||
|
Inserts Materials
|
Linear Speed(m/min)
|
Cutting Depth
|
Failure mode
|
|
Halnn BN-S20
|
70
|
1.7
|
Normal wear
|
|
Carbide Inserts
|
16
|
0.6
|
Chipping
|

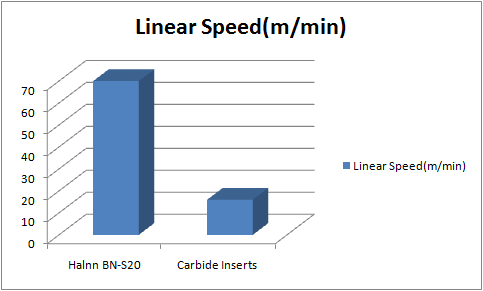

From above chart, we can see that, the cutting speed of Halnn BN-S20 solid cbn insert will be 4 times more than carbide insert, it will significantly improve the processing efficiency and the failure mode is normal.
