BN-S20 Solid CBN Insert Processing Surfacing Roller
|
|||
|
Machining Part：Surfacing roller Cylinder
|
Machining Materials:Cobalt-nickel alloy
|
||
|
Workpiece Hardness:HRC45~55
|
Inserts Grade:BN-S20 RNMN
|
||
|
Cutting Type:Dry Cutting
|
Cutting Parameters:ap=2.5，Fr=0.12mm/r,Vc=65m/min
|
||
|
Testing Performance
|
|||
|
Inserts Materials
|
Linear Speed(m/min)
|
Lifetime improved
|
Failure mode
|
|
Halnn BN-S20
|
65
|
12 times
|
Normal wear
|
|
Carbide Inserts
|
15
|
......
|
Chipping
|

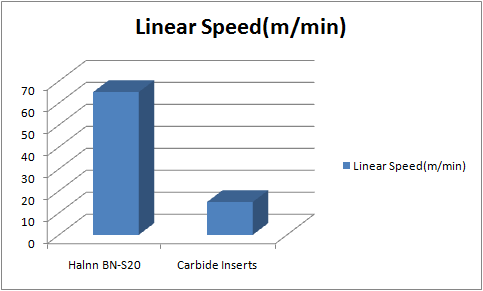

From above chart, we can see that,the linear speed of Halnn BN-S20 can be 4 times more than carbide insert, it not only improve the working efficiency, but also lower the costs for each workpieces.
