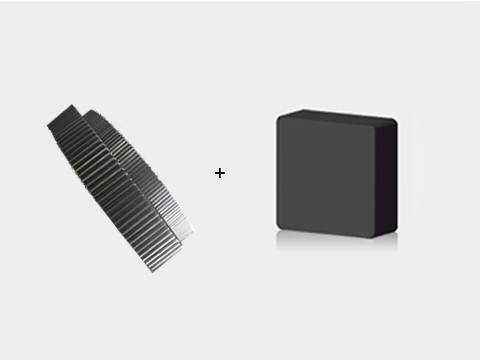

BN-S20 Solid CBN Insert processing Large Gears(Heavy Interrupted Turning)
|
|||
|
Machining Part:Gears
|
Machining Materials:Gear Steel
|
||
|
Workpiece Hardness:HRC 60
|
Inserts Grade:BN-S20 SNGN120712
|
||
|
Cutting Type:heavy interrupt Turning,Dry Cutting
|
Cutting Parameters:ap=2.5mm,Fr=0.12mm/r,Vc=90m/min
|
||
|

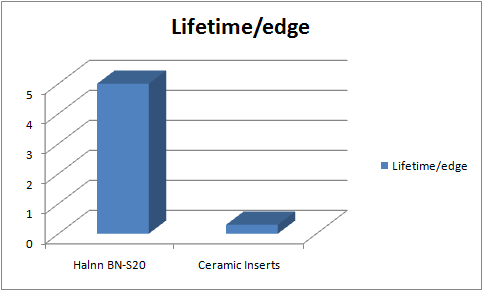

Testing Performance
|
|||
|
Inserts Materials
|
Linear Speed(m/min)
|
Lifetime/edge
|
Failure mode
|
|
Halnn BN-S20
|
90
|
5
|
Normal wear
|
|
Ceramic Inserts
|
45
|
0.3
|
Chipping
|
From above tablet, we can see that the tool life of Halnn BN-S20 can be 6 times more than ceramic insert.
