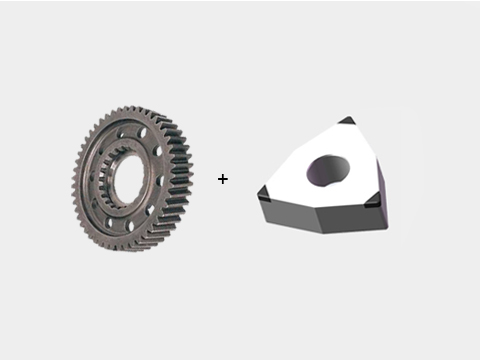

BN-H21 PCBN Insert processing Gear Steel(Heavy Interrupted Turning) |
|||
|
Machining Part:Gears |
Machining Materials:Gear Steel |
||
|
Workpiece Hardness:HRC 58~62 |
Inserts Grade:BN-H21 WNGA080408 |
||
|
Cutting Type:Heavy-interrupt Turning,Dry Cutting |
Cutting Parameters:ap=0.3mm,Fr=0.1mm/r,Vc=300m/min |
||
|
Testing Performance |
|||
|
Inserts Materials |
Linear Speed(m/min) |
Depth of Cut(mm) |
Lifetime/edge |
|
Halnn BN-H21 |
300 |
0.3 |
600 |
|
Other PCBN Inserts |
300 |
0.3 |
450 |

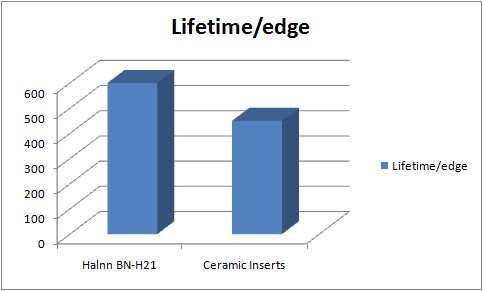

From above tablet, we can see that the tool life of Halnn BN-H21 for interrupted turning gears improved 30% than other PCBN Inserts.
