BN-S300 Solid CBN Insert processing Brake Discs
|
|||
|
Machining Part：Brake Discs
|
Machining Materials:FC200
|
||
|
Workpiece Hardness:HB170~210
|
Inserts Grade:BN-S300SCGN090408
|
||
|
Cutting Type:Dry Cutting
|
Cutting Parameters:ap=0.25mm,Fr=0.2mm/r,Vc=800m/min
|
||
|
Testing Performance
|
|||
|
Inserts Materials
|
inserts Model
|
Linear Speed(m/min)
|
Lifetime/edge
|
|
Halnn BN-S300
|
SCGN090408
|
800
|
300
|
|
Coating Inserts
|
CNMG120408
|
300
|
15
|

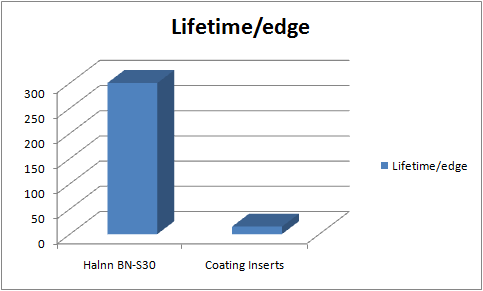

From above chart, we can see that the tool life of Halnn BN-S300 is about 20 times of coating carbide insert.
